GIGABYTE B860M GAMING X WIFI6E

Key Specifications

• Form Factor: Micro-ATX

• Chipset: Intel B860

• CPU Socket: LGA 1851

• Memory Support: DDR5, 4 DIMM slots, up to 256 GB, max speed 9200 MT/s (OC)

• PCIe Support: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4)

• Storage: 2x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4), 4x SATA

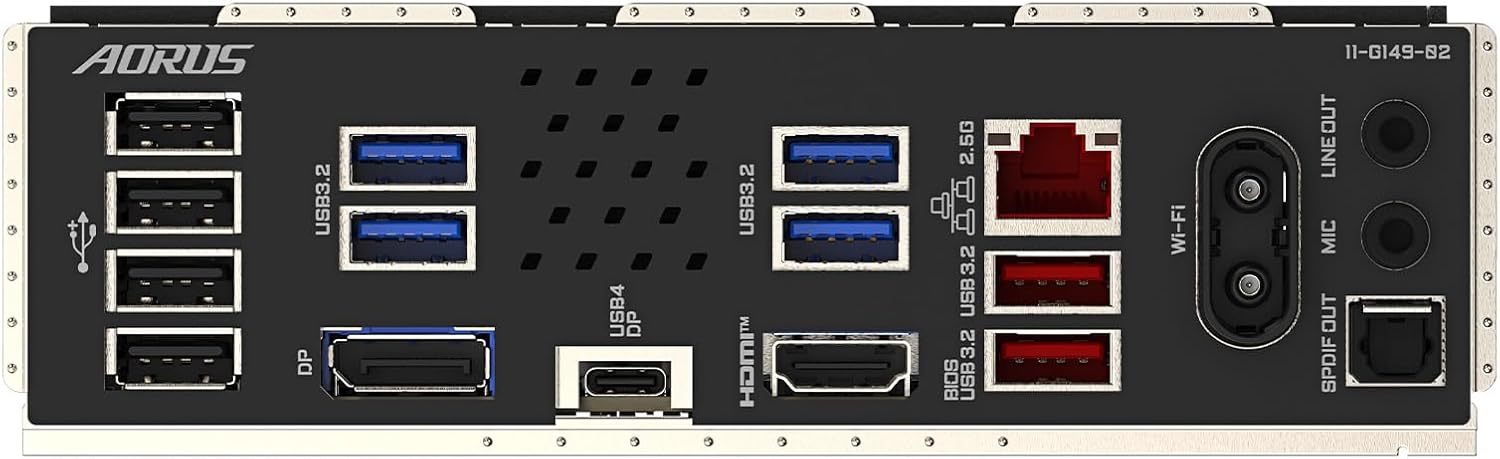

• USB Ports: 1x USB 4, 1x USB 3.1, 5x USB 3.0, 9x USB 2.0

• Network Connectivity: 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3

• Audio: ALC897 Realtek audio chip, Japanese capacitors

Features and Highlights

• Advanced Cooling: Massive cooling surface with M.2 Thermal Guard to prevent throttling from high-speed M.2 SSDs. The VRM heatsink design offers up to 4 times larger surface area for enhanced heat dissipation.

• User-Friendly Design: Easy BIOS Flashback button for hassle-free BIOS updates without installing a CPU, memory, or graphics card. The board also features a Q-Code display for easy troubleshooting and system monitoring.

• Memory Overclocking: DDR5 XMP Booster allows users to maximize DDR5 memory performance without manual tweaking, supporting overclocked DDR5 memory kits.

• AI-Driven Features: AORUS AI Snatch software provides one-click CPU & DDR5 memory overclocking, enhancing gaming and work efficiency with up to 11% AI performance boost.

• Connectivity: Equipped with the latest USB 4 interface for lightning-fast data transfer speeds, along with Wi-Fi 6E and 2.5GbE LAN for seamless online experiences.

• Audio Quality: High-End Audio Capacitors and Audio Noise Guard ensure high-quality audio output, perfect for immersive gaming and multimedia consumption.

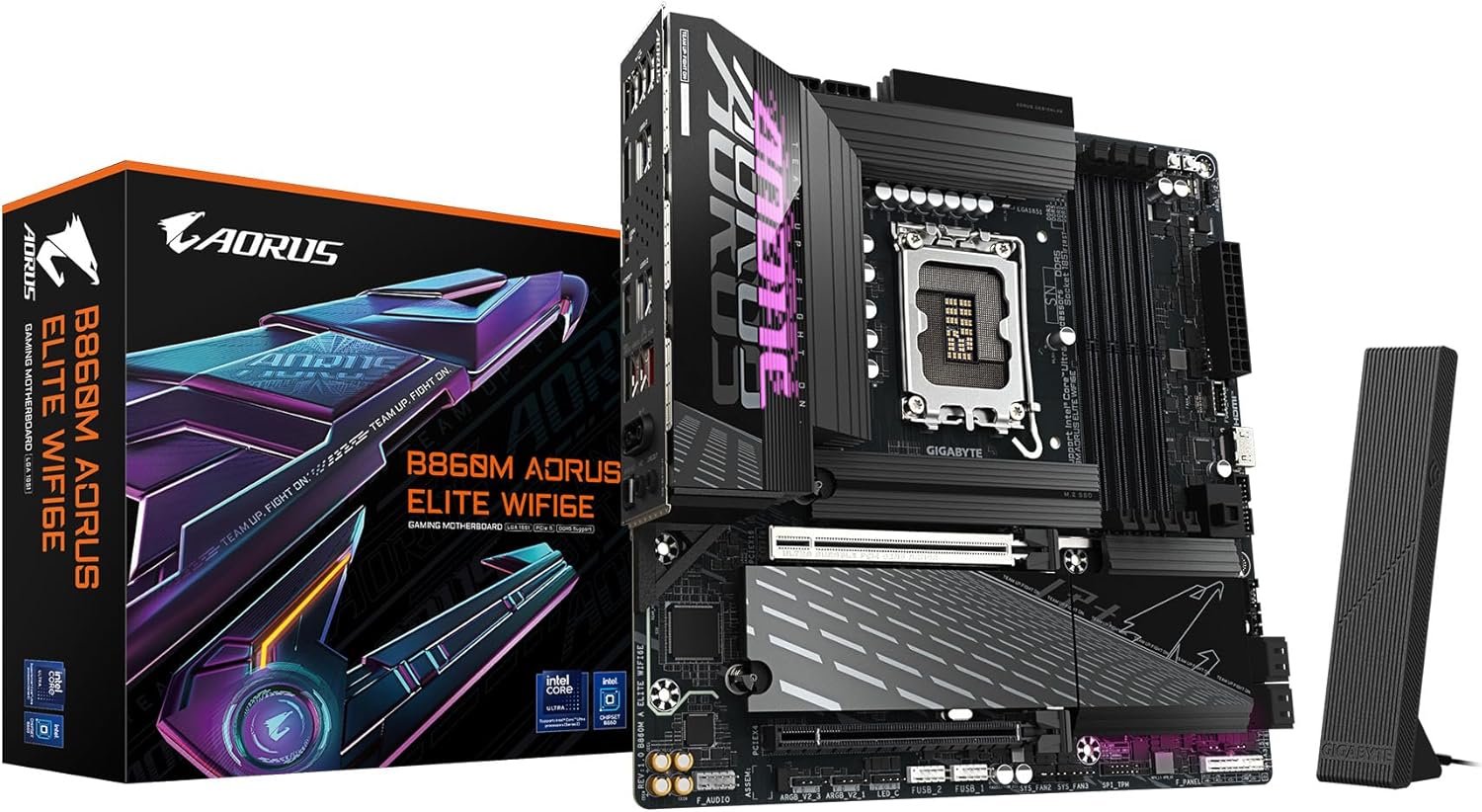

Packaging Information

• Gross Weight: 1.5 kg (3.3 lbs)

• Package Dimensions: 245 mm (L) x 220 mm (W) x 55 mm (H)
