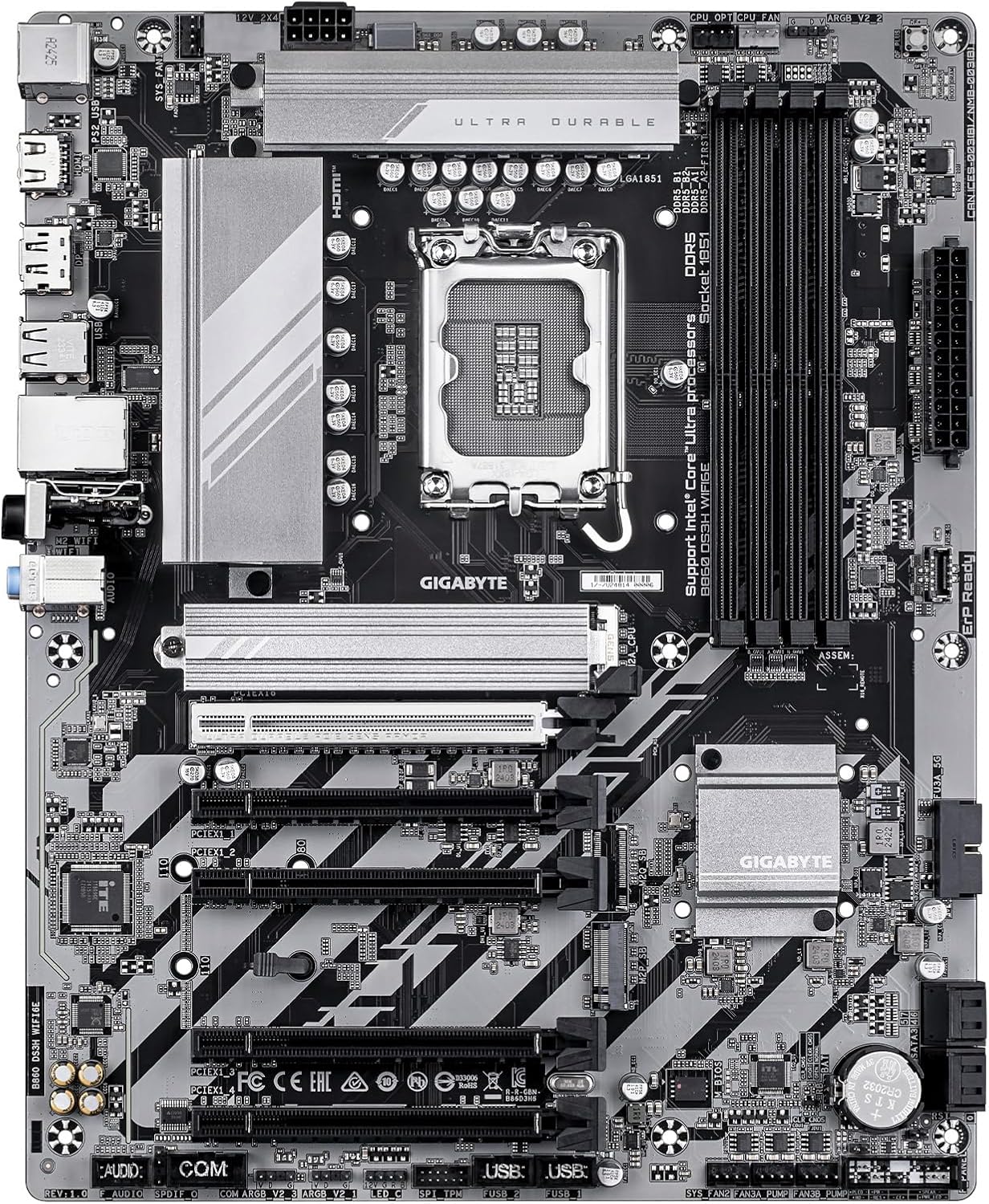

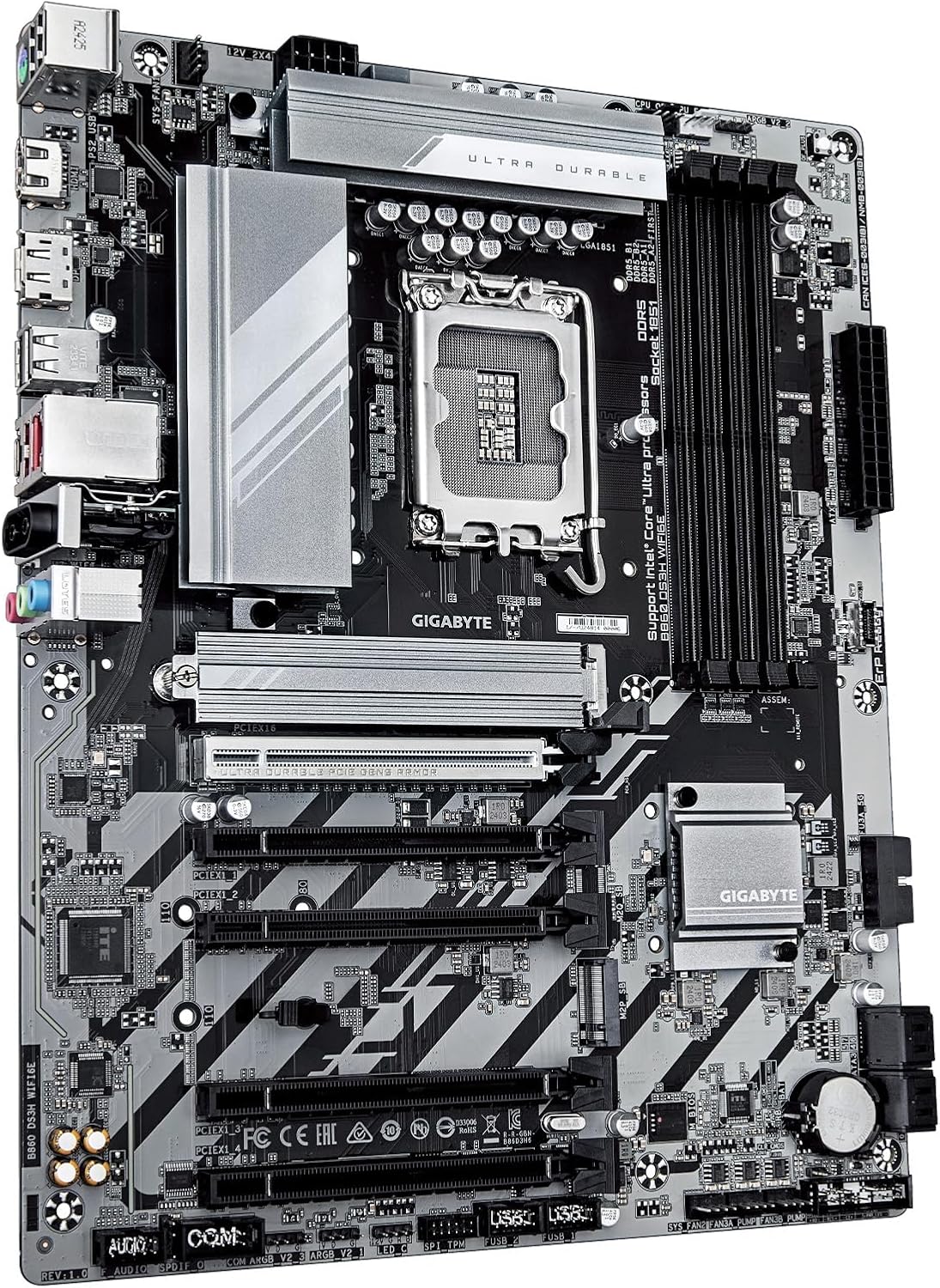

GIGABYTE B860 DS3H WIFI6E

Key Specifications

• Form Factor: ATX

• Chipset: Intel B860

• CPU Socket: LGA 1851

• Memory Support: DDR5, 4 DIMM slots, up to 128 GB

• PCIe Support: 1x PCIe 4.0 x16, 2x PCIe 4.0 x4

• Storage: 2x M.2 NVMe SSD slots (1x PCIe 4.0 x4, 1x PCIe 3.0 x4), 4x SATA 6Gb/s

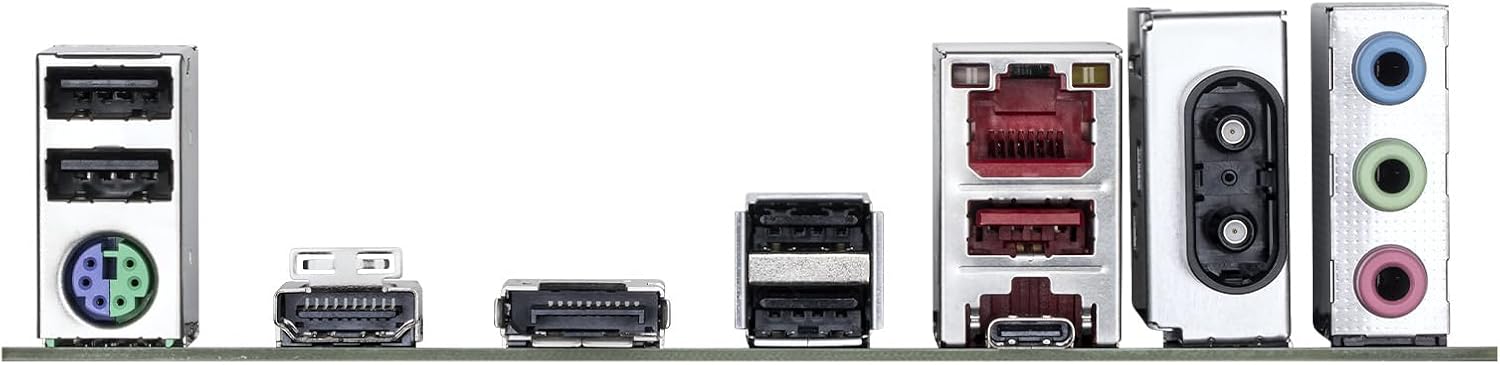

• USB Ports: 1x USB 3.2 Gen 2x2 (20Gbps), 2x USB 3.2 Gen 2 (10Gbps), 4x USB 3.2 Gen 1 (5Gbps), 8x USB 2.0

• Network Connectivity: 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.2

• Audio: Realtek ALC897 Codec with high-quality audio capacitors

Features and Highlights

• Advanced Cooling: Robust heatsink design ensures stable performance under load.

• User-Friendly Design: Easy BIOS Flashback button allows BIOS updates without installing a CPU, memory, or graphics card. Q-Code display simplifies troubleshooting and system monitoring.

• Memory Support: DDR5 support with high-speed memory capabilities, ideal for multitasking and demanding applications.

• Connectivity: Wi-Fi 6E and Bluetooth 5.2 for fast wireless connections, and 2.5Gb Ethernet for smooth online experiences.

• Storage Options: Multiple M.2 and SATA ports provide ample storage solutions for various needs.

• Audio Quality: Enhanced audio features with high-quality capacitors for clear and immersive sound.

Packaging Information

• Gross Weight: 1.8 kg (4.0 lbs)

• Package Dimensions: 310 mm (L) x 245 mm (W) x 60 mm (H)

Conclusion

The GIGABYTE B860 DS3H WIFI6E is a versatile ATX motherboard that offers a balanced feature set for everyday computing, gaming, and content creation. With robust cooling, advanced connectivity options, and support for the latest Intel processors and DDR5 memory, it provides reliable performance in a compact form factor. This motherboard is an excellent choice for users seeking a reliable and feature-rich platform.
