GIGABYTE X870E AORUS PRO ICE
GIGABYTE X870E AORUS PRO ICE
Key Specifications
Form Factor: ATX
Chipset: AMD X870E
CPU Socket: AM5 (LGA 1718)
Memory Support: DDR5, 4 DIMM slots, up to 128 GB, max speed 7200 MT/s (OC)
PCIe Support: 1x PCIe 5.0 x16 (x16), 2x PCIe 5.0 x4, 2x PCIe 4.0 x4
Storage: 4x M.2 NVMe SSD slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4), 6x SATA 6Gb/s

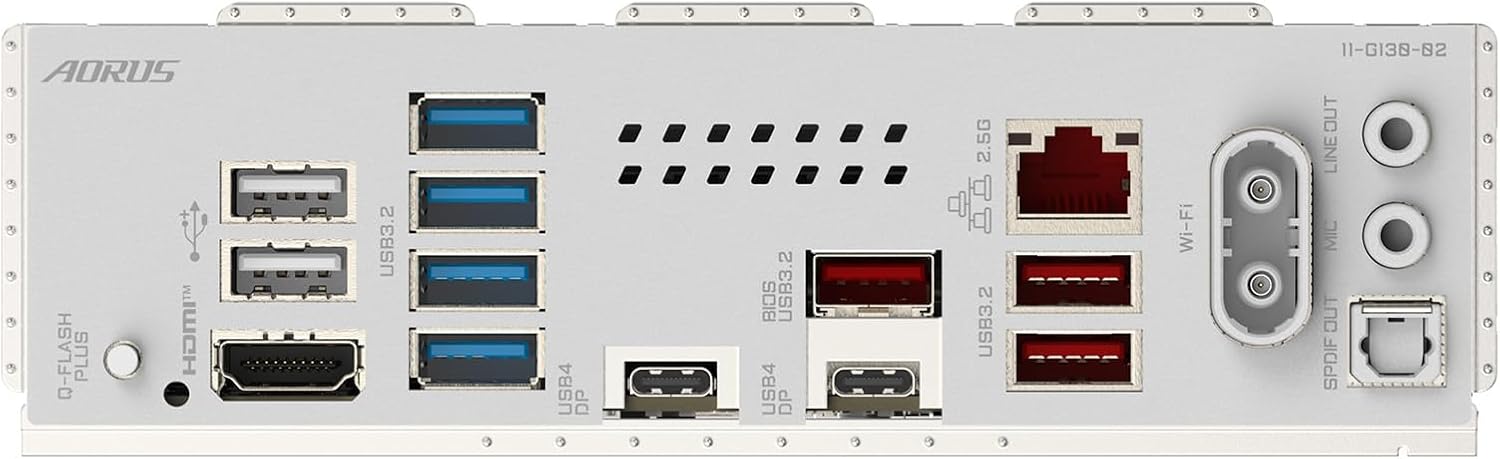

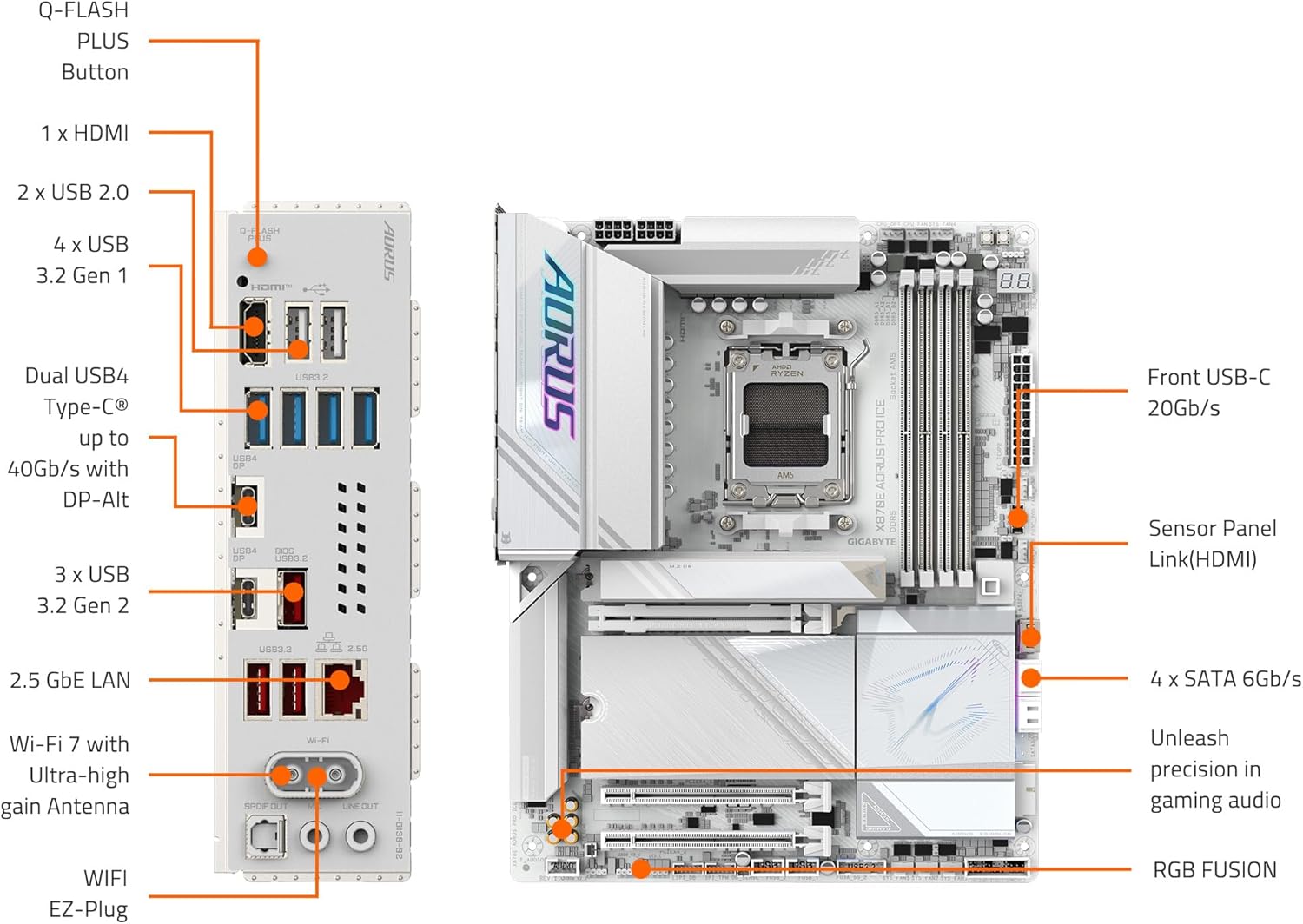

USB Ports: 2x USB 4 (40Gbps), 4x USB 3.2 Gen 2x2 (20Gbps), 6x USB 3.2 Gen 2 (10Gbps), 8x USB 3.2 Gen 1 (5Gbps), 6x USB 2.0
Network Connectivity: 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
Audio: Realtek ALC4082 Codec with high-quality audio capacitors
Features and Highlights
Advanced Cooling: Enhanced cooling solutions with a large VRM heatsink and M.2 Thermal Guard to prevent throttling from high-speed M.2 SSDs. The AORUS PRO ICE features additional cooling enhancements for better thermal performance.
User-Friendly Design: Easy BIOS Flashback button allows BIOS updates without installing a CPU, memory, or graphics card. Q-Code display simplifies troubleshooting and system monitoring.
Memory Overclocking: DDR5 XMP Booster for maximizing DDR5 memory performance without manual tweaking.
AI-Driven Features: AORUS AI Snatch software provides one-click CPU & DDR5 memory overclocking, enhancing gaming and work efficiency.
Connectivity: Equipped with the latest USB 4 interface for lightning-fast data transfer speeds, along with Wi-Fi 6E and 2.5GbE LAN for seamless online experiences.
Audio Quality: Enhanced audio features with high-quality capacitors for clear and immersive sound.
Stylish Design: Aesthetic RGB lighting that can be synchronized with other GIGABYTE devices for a cohesive look.
Packaging Information
Gross Weight: 2.3 kg (5.1 lbs)
Package Dimensions: 320 mm (L) x 260 mm (W) x 70 mm (H)
Conclusion
The GIGABYTE X870E AORUS PRO ICE is a high-performance ATX motherboard designed for AMD enthusiasts who demand top-tier performance and advanced cooling. With support for the latest AMD processors, DDR5 memory, and PCIe 5.0, it offers exceptional performance for gaming, content creation, and everyday use. The enhanced cooling solutions, user-friendly features, and cutting-edge connectivity options make it an excellent choice for building powerful and efficient systems.
Packaging Information
Gross Weight: 2.3 kg (5.1 lbs)
Package Dimensions: 320 mm (L) x 260 mm (W) x 70 mm (H)
