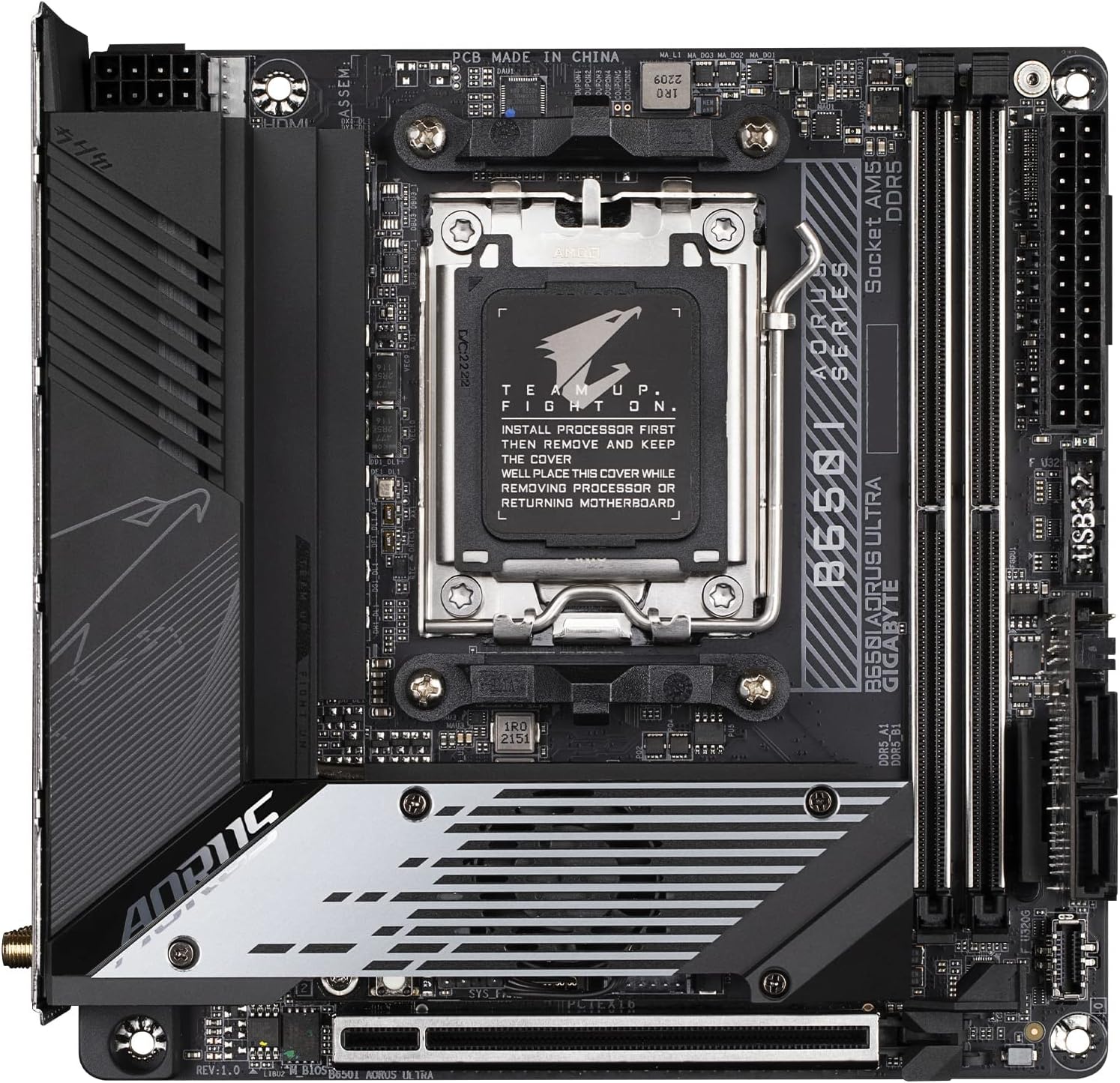

GIGABYTE B650I AORUS ULTRA

Key Specifications

• Form Factor: Mini-ITX

• Chipset: AMD B650

• CPU Socket: AM5 (LGA 1718)

• Memory Support: DDR5, 2 DIMM slots, up to 64 GB, max speed 6400 MT/s (OC)

• PCIe Support: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4

• Storage: 2x M.2 NVMe SSD slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4), 2x SATA 6Gb/s

• USB Ports: 1x USB 4 (40Gbps), 2x USB 3.2 Gen 2x2 (20Gbps), 4x USB 3.2 Gen 2 (10Gbps), 4x USB 3.2 Gen 1 (5Gbps), 4x USB 2.0

• Network Connectivity: 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3

• Audio: Realtek ALC4082 Codec with high-quality audio capacitors

Features and Highlights

• Advanced Cooling: Robust heatsink design with M.2 Thermal Guard to prevent throttling from high-speed M.2 SSDs. The VRM heatsink design ensures stable performance under load.

• User-Friendly Design: Easy BIOS Flashback button allows BIOS updates without installing a CPU, memory, or graphics card. Q-Code display simplifies troubleshooting and system monitoring.

• Memory Overclocking: DDR5 XMP Booster for maximizing DDR5 memory performance without manual tweaking.

• AI-Driven Features: AORUS AI Snatch software provides one-click CPU & DDR5 memory overclocking, enhancing gaming and work efficiency.

• Connectivity: Equipped with the latest USB 4 interface for lightning-fast data transfer speeds, along with Wi-Fi 6E and 2.5GbE LAN for seamless online experiences.

• Audio Quality: Enhanced audio features with high-quality capacitors for clear and immersive sound.

• Stylish Design: Aesthetic RGB lighting that can be synchronized with other GIGABYTE devices for a cohesive look.

Packaging Information

• Gross Weight: 1.3 kg (2.9 lbs)

• Package Dimensions: 170 mm (L) x 170 mm (W) x 50 mm (H)

Conclusion

The GIGABYTE B650I AORUS ULTRA is a high-performance Mini-ITX motherboard designed for AMD enthusiasts who demand top-tier performance and advanced features in a compact form factor. With support for the latest AMD processors, DDR5 memory, and PCIe 5.0, it offers exceptional performance for gaming, content creation, and everyday use. The robust cooling solutions, user-friendly features, and cutting-edge connectivity options make it an excellent choice for building powerful and efficient mini-ITX systems.
